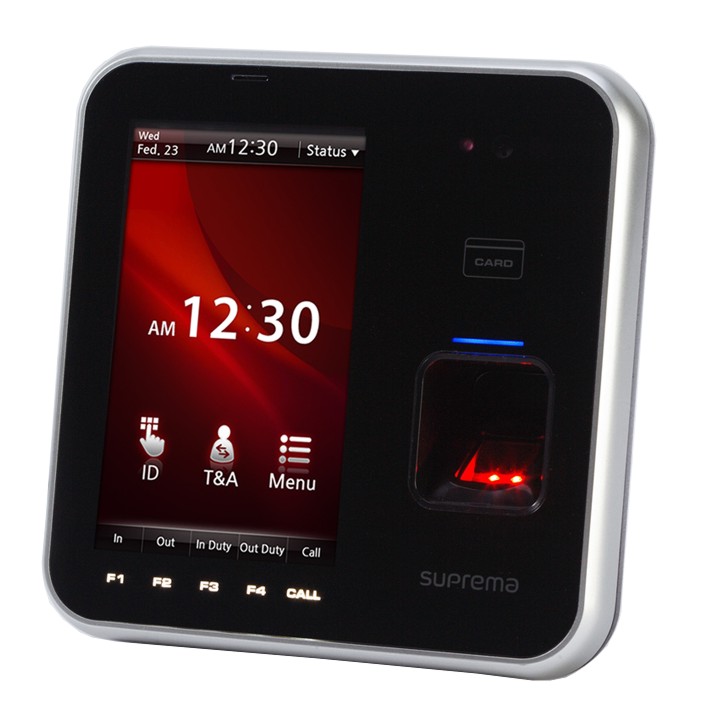

Suprema BioStation T2
BioStation T2 is the premium fingerprint reader incorporating the state-of-the art technologies converging face detection, PoE and IP network technology, targeting high-end access and attendance market.
T2 would be the first fingerprint reader which is equipped with Embedded web-server, named BioStar Lite, and it is expected to minimize installation cost and time by removing installation of database and PC software, while to make system operation easier than ever by managing system from any place at any time through a web browser.
5-inch Touch Screen LCD with Intuitive GUI
Its ultra wide 5.0-inch WVGA LCD features heavy-duty resistive touch screen technology with wide viewing angle. The display panel has been designed to provide extreme usability and precision for secure biometric access control to high-traffic time attendance applications. Its intuitive GUI allows users to easily learn necessary controls and functions with minimal training and instruction. The GUI also supports customizable wallpaper and notice board.
Powerful Dual-CPU System
With its sophisticated dual-CPU architecture, BioStation T2 offers super fast matching performance, rapid response and exceptionally low error rate. A powerful 533MHz DSP is dedicated to fingerprint matching process for optimal performance, and a 667MHz RISC ensures uninterrupted device operation and instant face detection.
IP Access Control with PoE & WiFi
BioStation T2’s TCP/IP connectivity offers extra flexibility in designing your security system while reducing cost on installation and maintenance. Compare to conventional access control system, IP access control system provides lower cost per door with less wiring and utilization of existing network infrastructure. BioStation T2 also offers PoE(Power over Ethernet) and WiFi to further enhance its extensibility. The PoE feature enables simpler wiring and lower installation cost.On the other hand, users can also choose to connect BioStation T2 with WiFi interface to enjoy benefits of faster installation with significant cost reduction.
Face Detection Technology
BioStation T2 features Face Detection Technology by capturing face image logs on each entry. With its megapixel built-in camera, the device automatically captures face image from each users to prevent buddy punching and unauthorized entries.
Embedded Web Server
BioStation T2 is preloaded with BioStar Lite embedded web server software. The BioStar Lite allows administrators to control up to 10 Suprema IP access control devices with a web browser without installing any software on PC. The application provides comprehensive user/device controls, door configurations, access grouping, scheduling and real-time monitoring of whole system.
Suprema Algorithm
At the core of BioStation T2, the world’s most powerful fingerprint algorithm assures unrivalled speed and accuracy. Recognized by FVC and NIST MINEX Tests, Suprema Algorithm has been proven to be one of the most sophisticated and advanced technology in biometric industry.
Video Phone Interface
BioStation T2 supports videophone feature with its built-in camera, microphone and speaker. Videophone feature can be integrated with conventional analog based video phones as well as IP based video and audio interface.
Technical specifications:
CPU: 667MHz RISC, 533MHz DSP
Memory: 1GB flash, 256MB RAM
LCD: 5.0 inch WVGA touchscreen
Fingerprint Sensor: Optical
Camera: Face detection & videophone
RF Card Options: 125KHz EM, 13.56MHz Mifare/DesFire
Template Capacity: 400,000 (1:1), 20,000 (1:N)
Max User: 200,000
Log Capacity: Fingerprint: 1,000,000 / Image: 5,000
PoE: Yes
Interfaces: Wireless LAN(optional), TCP/IP, Wiegand 2ch RS485, RS232, 4 x TTL I/O, 2 x Relay USB (Host & Slave), SD card slot
Tamper: Switch
Sound: 16 bit Hi-Fi voice & sound indication
Operating Temp: - 20’C ~ 50’C
Operating Voltage: 12vDC
Dimensions (mm): W155 x H155 x D40
